2-Phase Hybrid Step Motor
110BYG 1.8° |
|
 |
步距角Step Angle ------------------------------------- 1.8°
环境温度 Ambient Temperature -------------------- 25— +40℃
温升 Temperature Rise ---------------------------------- 85K
绝缘电阻 Insulation Resistance ------------ 500VDC 100MΩMin
绝缘等级 Insulation -------------------------------- Class B
绝缘强度 Dielectric Strength ---------------- 500VAC 1minute
径向跳动 Radial Play ---------------------------- 0.02mm Max
轴向间隙 End Play ------------------------------- 0.08mm Max |

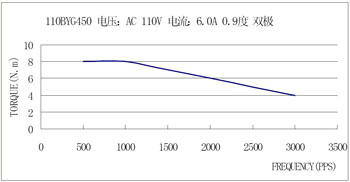

| Frequency-torque characteristics 矩频特性 |
|
.JPG) |
.JPG) |
| Wiring Diagram 接线图 |
|
.JPG) |
|
|
|
